Create accurate flat patterns
for pipes, cones, transitions and branches
Preview your part in 3D and export production-ready DXF files for plasma, laser and oxy-fuel cutting.
How sheet metal development works here

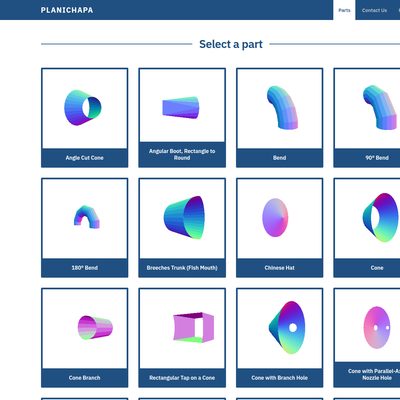

Choose a part
We develop new parts constantly!
Enter measurements
In millimetres or inches: pick one with the switch above the form.

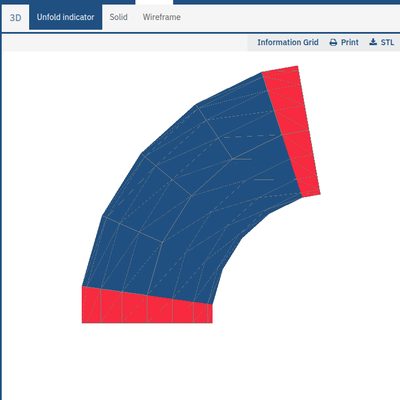

See and place dimensions on your results
You can also export to CAD or print to PDF
Free: unlimited calculations and 1 part a month in DXF, no card needed. Full access: £9 for 1 month, or £69 for 12 months, one-off. See pricing
Pattern development for pipe fabrication
Each part has a page covering what it is, which measurements the calculation needs and a worked example — from cones and transitions to branches and segmented bends.
